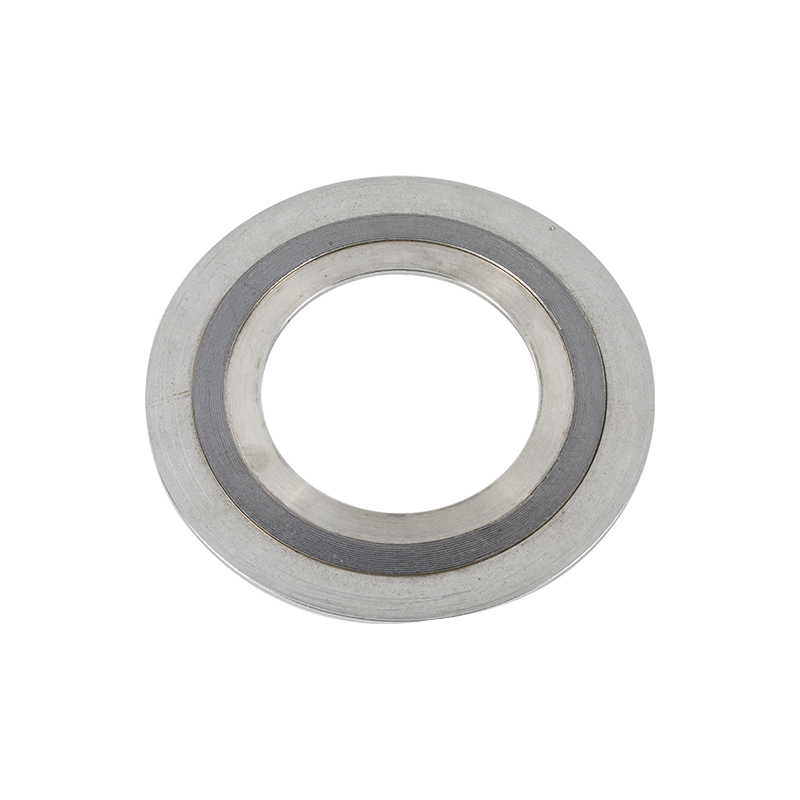

Stainless Steel Ring Standard Spiral Wound Gasket
  • Stainless Steel Ring Standard Spiral Wound Gasket
  • Stainless Steel Ring Standard Spiral Wound Gasket

Stainless Steel Ring Standard Spiral Wound Gasket

Product Specification:

Spiral Wound Gaskets

BOTE produce and provide all kinds of standard and non-standard spiral wound gaskets, adapt different flange and pipes, heat exchanger, manhole and handle requirements. We constantly improve the quality, expand production scale and shorten delivery time, reduce the cost.

We can produce according to ASME, BS, JIS and EN(DIN) standards or client request.

Standard Spiral Wound Gaskets

ASME standard Spiral Wound Gasket

JIS standard Spiral Wound Gasket

DIN standard Spiral Wound Gasket

Spiral Wound Gasket for Heat Shield

Manhole & Handhole /Non-rounded Spiral Wound Gasket

Spiral Wound Gasket for Heat Exchanger

Low Load Spiral Wound Gaskets



Standard Spiral Wound Gaskets

BT-SWG Spiral Wound gasket is formed of v-shape or w-shape Metallic strap and soft non-metallic filler spiraling and welding. According to the various of flanges , it can be within or without inner and outer rings.

Depend on its excellent compression resilience it is suitable for sealing spots where the alteration of temperature and pressure are frequent.

Types:

SWG-R Basic Type

Basic construction type, inner and outer diameters are reinforced with several piles of metal without filler to give greater stability and better compression characteristics. - Suitable for tongue and groove, male and female or grooved to flat face flange assemblies.

SWG-RIR Inner Ring Type

Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce turbulent flow of process fluids and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner metal ring. - Suitable for male and female pipe flanges.

SWG-CG Outer Ring Type

Solid outer ring accurately locates the gasket on the flange face to give the additional radial strength to prevent the gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because the end of outer ring will touch at bolts - Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.

SWG-CGI Inner & Outer Rings Type

A inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It will prevent the corrosions on flange face at annular space. - Suitable for use with flat face and raised face flanges and specified for high pressure / temperature service - Class 900 and above or where corrosive or toxic media are present.

Typical Applications

It can be used as the static sealing element of pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc. It has been widely applied in the fields of petrochemical, mechanical manufactory, power station, metallurgy, shipbuilding, medical and pharmaceutical nuclear power station and navigation, etc.
