Metallic Flange Gaskets
Metallic flange gaskets are designed to provide a reliable, leak-proof seal between two flanges in a pipeline or other industrial application. They are made from a variety of metals, including stainless steel, copper, and other alloys, and are typically used in high-pressure and high-temperature environments.
The design of metallic flange gaskets typically includes a central ring or core surrounded by multiple layers of metal, with the outermost layer often having a serrated or grooved surface. The layers of metal are typically bonded together with an adhesive or through a process called explosion welding.
Metallic flange gaskets are commonly used in industries such as oil and gas, chemical processing, and power generation. They are particularly well-suited for applications that involve high pressures, temperatures, or corrosive substances.
It is important to select the right type of metallic flange gasket for a particular application, taking into account factors such as the type of fluid or gas being transported, the temperature and pressure of the system, and the flange material. Proper installation and maintenance of metallic flange gaskets are also critical to ensuring their longevity and effectiveness in preventing leaks.
What are the types of metallic flange gaskets
There are several types of metallic flange gaskets available, each with its own specific design and application. Some of the most common types of metallic flange gaskets include:

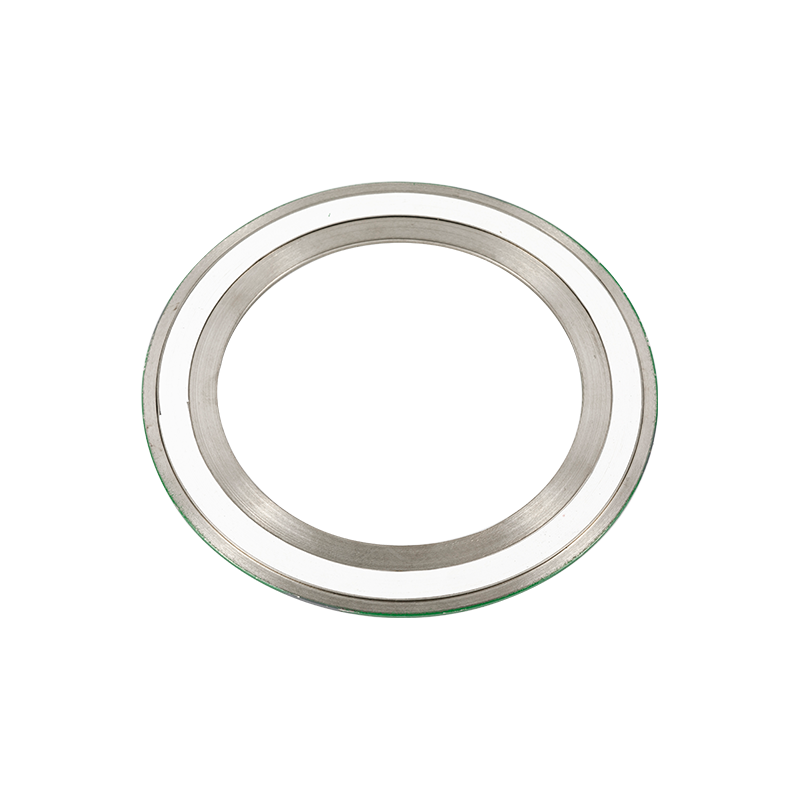

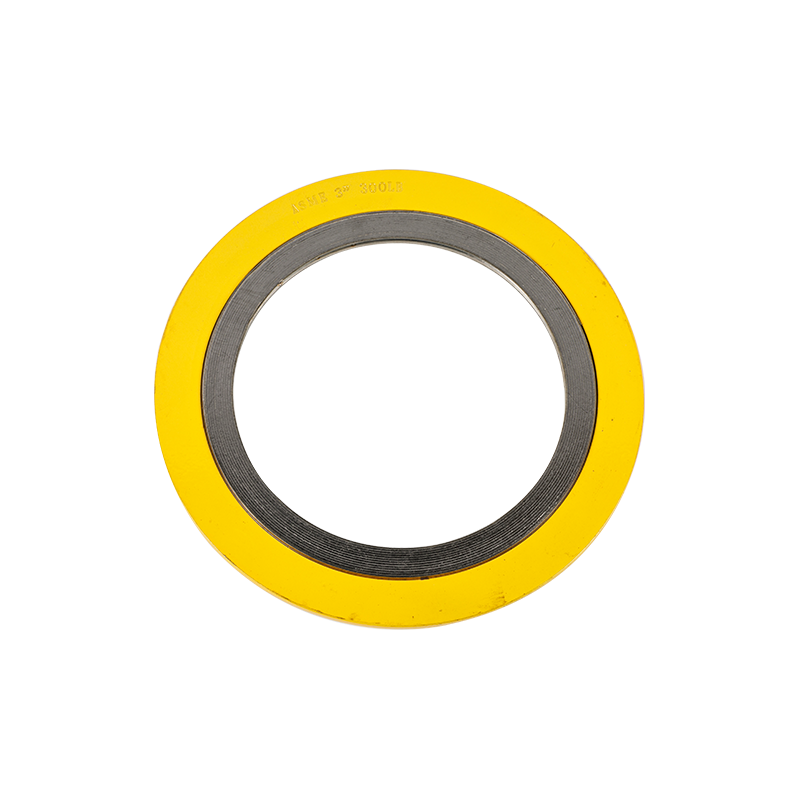

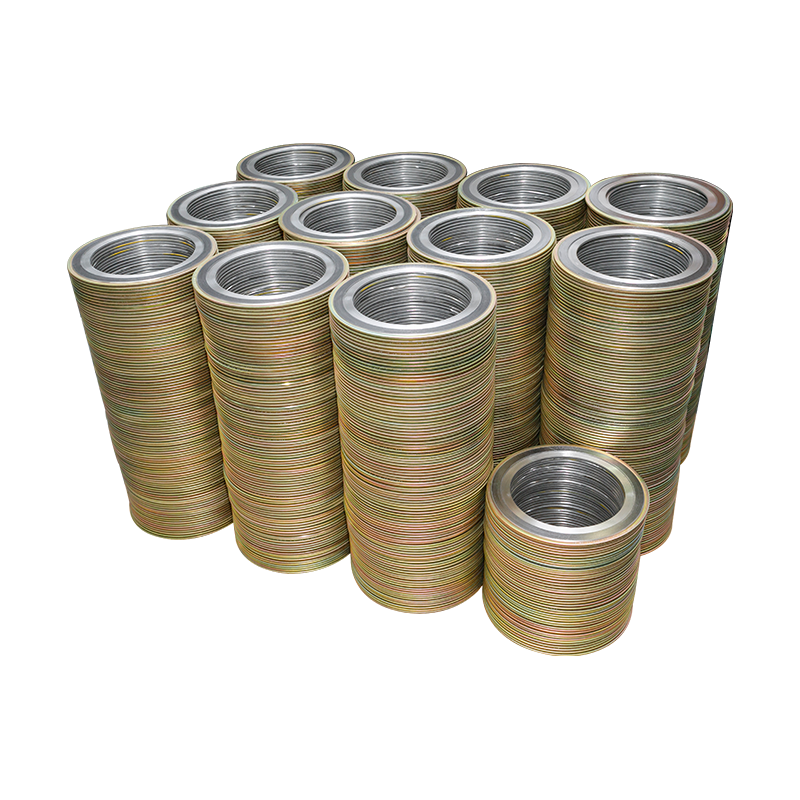

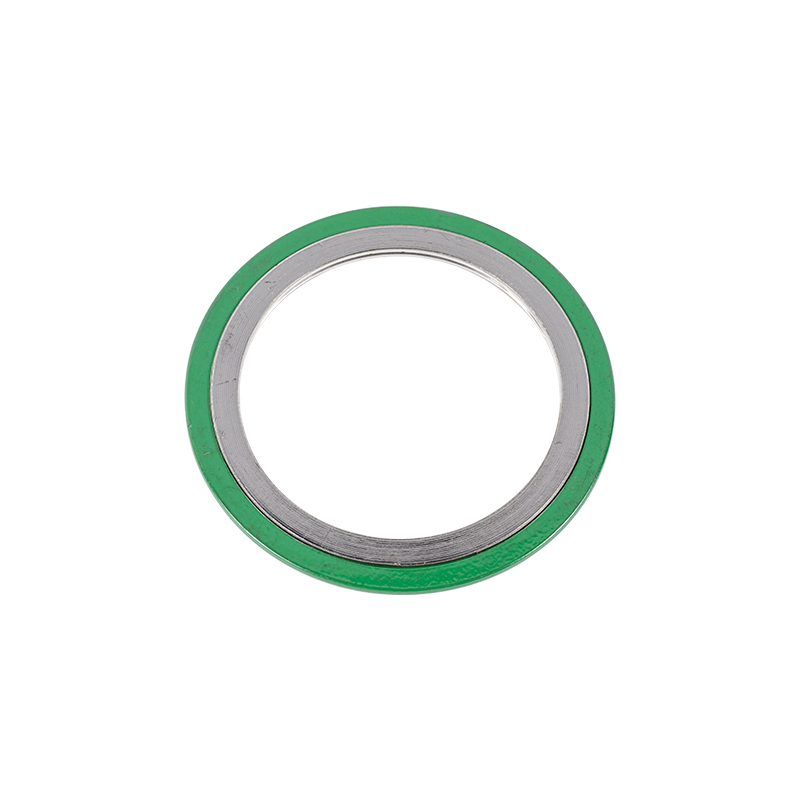

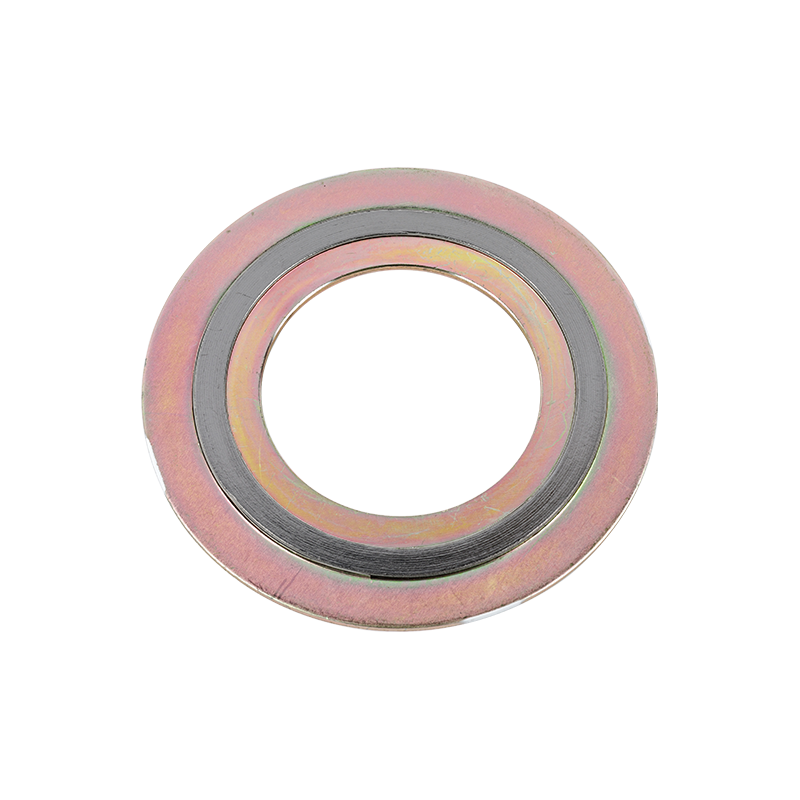

Spiral Wound Gaskets: These gaskets are made by winding a thin strip of metal (such as stainless steel) and a soft filler material (such as graphite) into a spiral shape. They provide excellent sealing performance and can handle high temperatures and pressures.
Ring Joint Gaskets: These gaskets are made from metal (such as stainless steel or soft iron) and have a ring-shaped cross-section. They are designed to be used with raised face flanges and provide a high-pressure, high-temperature seal.
Metal Jacketed Gaskets: These gaskets consist of a soft filler material (such as graphite or PTFE) that is enclosed in a metal jacket (such as stainless steel or carbon steel). They are commonly used in applications that require resistance to both high temperature and high pressure.
Corrugated Metal Gaskets: These gaskets are made from thin sheets of metal (such as stainless steel) that are corrugated to create a wavy shape. They provide good sealing performance and are commonly used in applications that involve high temperature and pressure fluctuations.
Kamprofile Gaskets: These gaskets consist of a metal core (such as stainless steel) with a profiled surface that is covered with a soft filler material (such as graphite). They provide good sealing performance and are commonly used in applications that require high temperature and pressure resistance.
What are the characteristics of metallic flange gaskets
The characteristics of metallic flange gaskets depend on their specific design and construction materials. However, in general, metallic flange gaskets offer several characteristics that make them ideal for high-pressure, high-temperature applications. Some of these characteristics include:
High-temperature resistance: Metallic flange gaskets are designed to withstand extreme temperatures, making them suitable for use in high-temperature applications.
High-pressure resistance: Metallic flange gaskets can handle high-pressure environments, making them ideal for use in systems that operate at high pressure.
Corrosion resistance: Metallic flange gaskets made from stainless steel or other corrosion-resistant metals are resistant to corrosion and can be used in corrosive environments.
Good sealing performance: Metallic flange gaskets can provide a reliable, leak-proof seal between two flanges, reducing the risk of fluid or gas leakage.
Durability: Metallic flange gaskets are durable and can withstand harsh conditions, ensuring long-term reliability.
Easy installation: Metallic flange gaskets are typically easy to install and require minimal maintenance.
